Spindle Hand Press (excl. accessories)

Easy to make holes and attach rivets

High durability

Lower error rate (compared to working with a punch)

Must attach before use

Excl. necessary accessories

With this hand press and the fitting accessories, you can easily punch holes in leather and biothane and attach rivets or snap buttons. This makes it a practical, multifunctional tool for your dogcollars, -leashes, adapters or halters. The press is made out of cast iron and has dimensions of 80 x 180 x 320 mm.

See here how the spindle works .

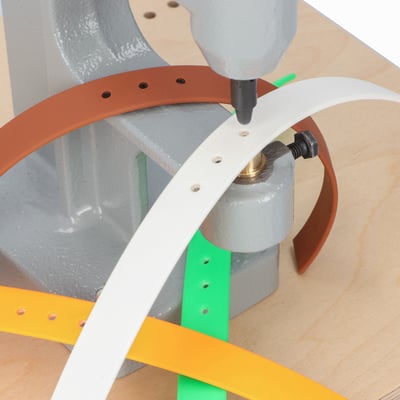

Punching holes and pressing rivets

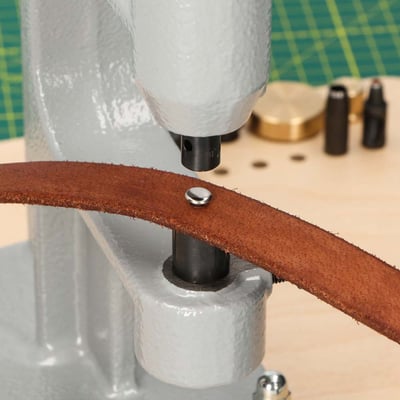

The machine is simple in use, all you need to do is insert the accessories and pull the lever. Because the spindle exerts a downward force and is using the right stamps, the holes will be punched in exactly the right place. When pressing rivets the principle is the same, you only need to switch the accessories.

Spindle and accessories

The spindle hand press has multiple functions and uses different accessories for each one. To make holes you will need the Anvil (available in multiple sizes) and a machine hollow pipe. To attach rivets you will need a Rivet Die Set (available in multiple sizes). You must attach the hand press before use. You can use the Spindlestation, for example.

Recommended Accessories Spindle Hand Press:

To make holes you will need:

• Anvil: available in sizes 12 mm , 24 mm and 28 mm
• Machine Hollow Pipes: Available in various sizes

To press rivets together you will need:

• Rivet Die Set available in sizes 8 mm and 10 mm

Specifications:

• Material: cast iron
• Dimensions: 80 x 180 x 320 mm
• Weight: 3kg
• Colour: Grey
• Screw thread: M7 (Please note: the Effective Diameter is 6.35 mm, your tool insert need to match this size to fit the Spindle Hand Press)

Please note:

• Place an extra layer of biothane or leather under the material in which you make the hole. This will damage the anvil less quickly.
• Please note the Screw Thread is M7, which is the insert for your tools

Tutorial:

https://youtu.be/dDmws5BLHaU
